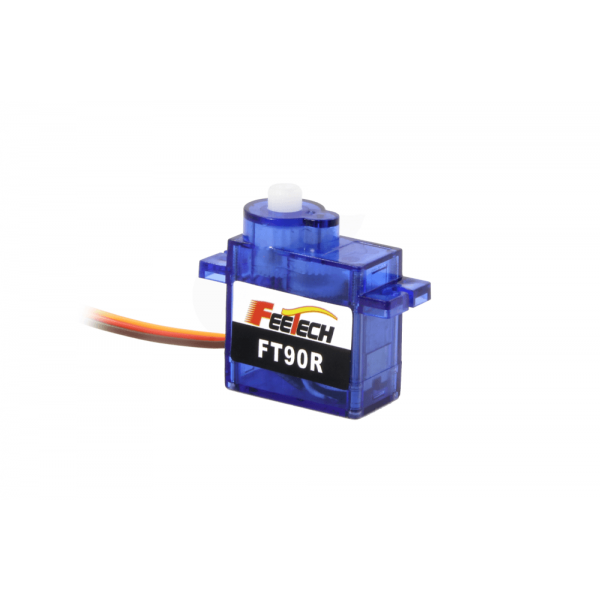

Servo Digital Continuous Rotation 9g FT90R

Servo Digital Continuous Rotation 9g FT90R.

Spesifikasi:

• Model: FT90R
• Gear Type: Plastic Gear
• Limit Angle: 360°
• Bearing: No Ball Bearings
• Horn Gear Spline: 20T
• Horn Type: Plastic, POM
• Case: ABS
• Motor: Metal Brush Motor
• Operating Voltage Range: 4.8 ~ 6V
• Idle Current (at stopped): 5mA ~ 6mA
• No Load Speed: 130RPM@6V
• Running Current (at no load): 900mA @6V
• Peak Stall Torque: 1.5kg.cm@6V
• Rated Torque: 0.5kg.cm@6V
• Stall Current: 900mA@6V
• Rotating Direction: CW (1500 ~ 1000 usec), CCW (1500 ~ 2000 usec)

Dokumen:

1. Datasheet (Link)
