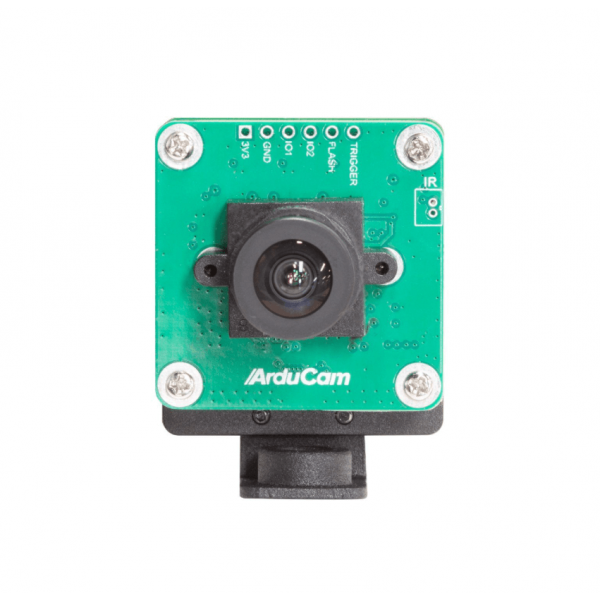

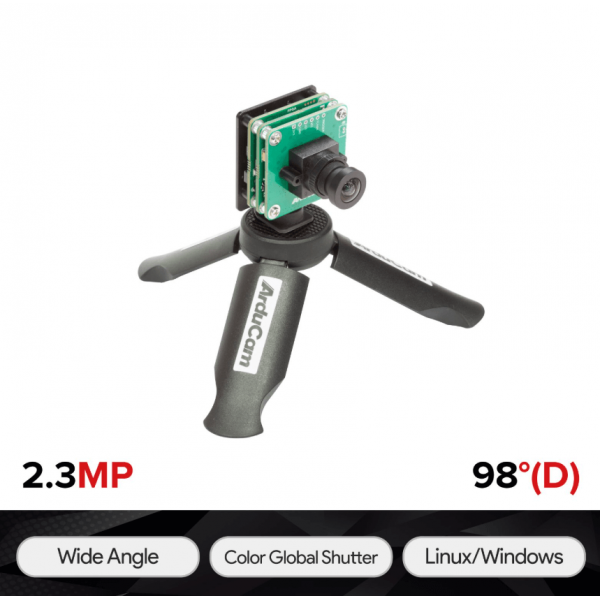

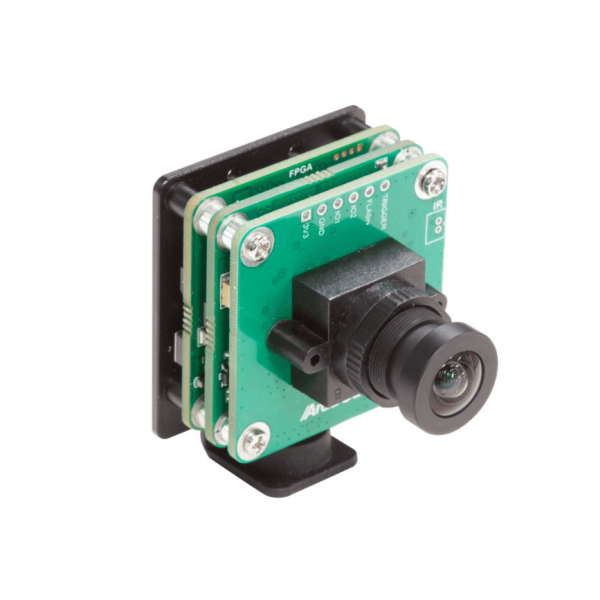

Arducam 2.3MP AR0234 Color Global Shutter USB 3.0 Camera Module

296-608

This product is no longer in stock

Close

Rp 3.690.000

Add to wishlist

Free Google QRcode module from Mediacom87

Arducam 2.3MP AR0234 merupakan kamera USB yang sudah menggunakan sensor CMOS 2.3MP dan dilengkapi dengan teknologi global shutter yang dikombinasikan dengan lensa yang tajam dan presisi membuat kamera ini dapat menangkap gambar dengan stabil yang sangat ideal untuk objek yang bergerak cepat. Memiliki ukuran yang kecil dan mudah digunakan (Plug and Play) yang kompatibel dengan berbagai platform Windows dan Linux.

Fitur:

    • Plug and Play
    • Color Global Shutter
    • Fast and Precise
    • Advanced Image Enhancement
    • Outstanding Imaging

Aplikasi:

    • Machine Vision
    • Video Surveillance
    • 3D Scanning and Metrology
    • Live Streaming
    • Video Conferencing

Spesifikasi Umum:

    • Operating Voltage: 5V
    • Operating Temp: 32°F - 158°F (0°C ~ 70°C)
    • Power Requirements: Max: 1.45W, Min: 0.92W

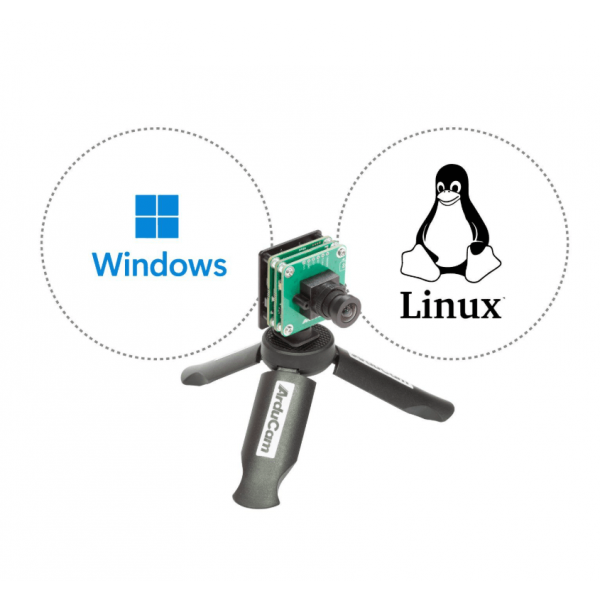

    • Supported OS: Windows, Linux

Spesifikasi Image Sensor:

    • Sensor: AR0234
    • Still Resolution: 2.3 Megapixels
    • Color Filter Type: Color
    • Shutter Type: Global Shutter
    • Optical Size: 1/2.6"
    • Output Format: YUY2
    • Pixel Size: 3 um x 3um
    • Sensor Active Area: 1920 (H) x 1200 (V)
    • Frame Rate (USB 3.0): 1920x1200@50fps, 960x600@80fps
    • Frame Rate (USB 2.0): 960x600@10fps

Spesifikasi Lensa:

    • Focus Type: Fixed Focus
    • FOV: 98° (D) x 85° (H) x 69° (V)
    • Lens Mount: M12
    • F.NO: F2.5
    • E.F.L: 3.56mm
    • IR Sensitivity: Integral IR-cut Filter, Visible Light Only

Paket Penjualan:

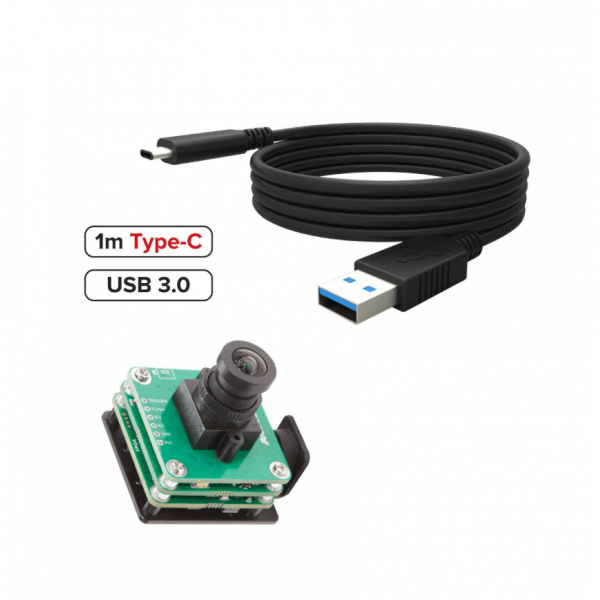

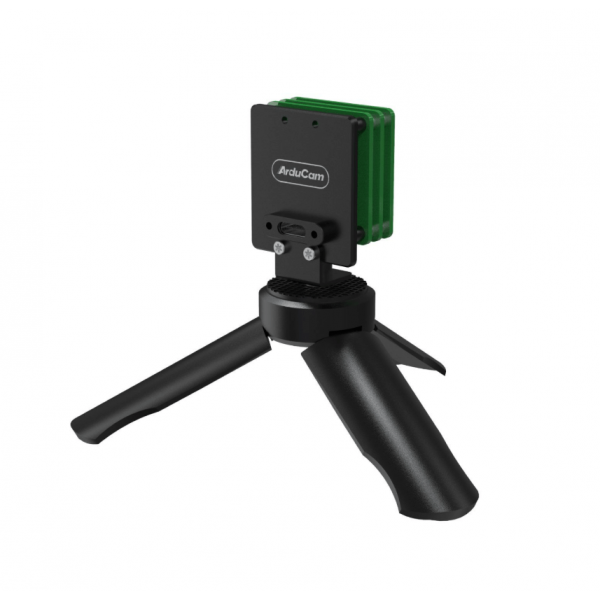

1x AR0234 USB3 Camera with Back Cover and Tripod Adapter

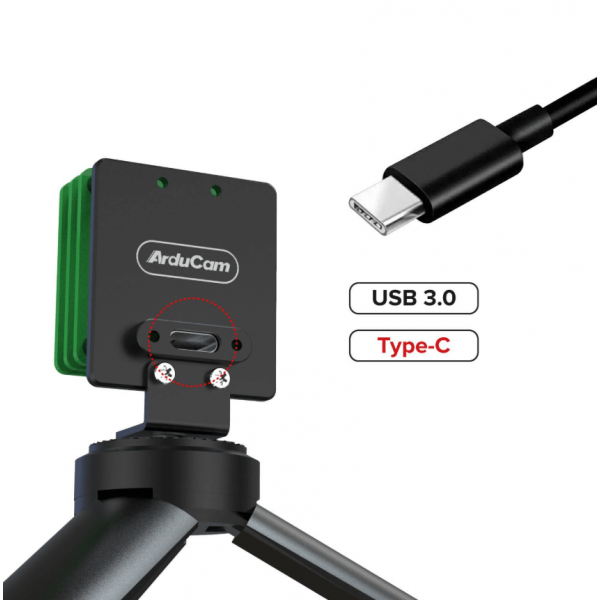

1x 1m USB A to Type-C Cable

Dokumen:

1. Datasheet (Link)
2. Quick Start Guide (Link)
