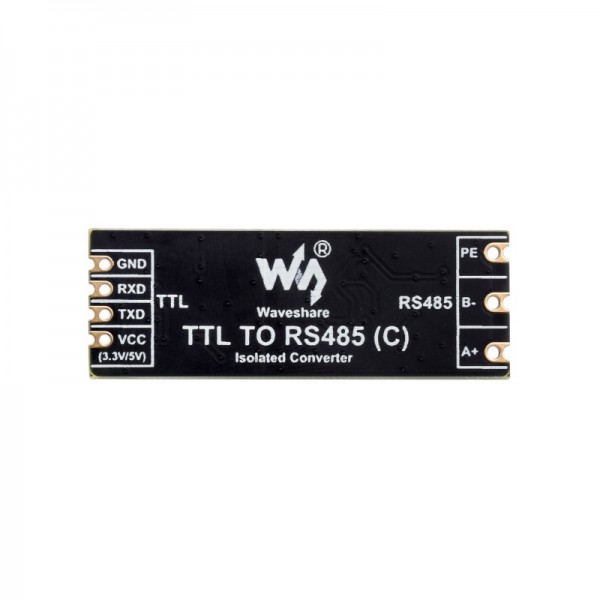

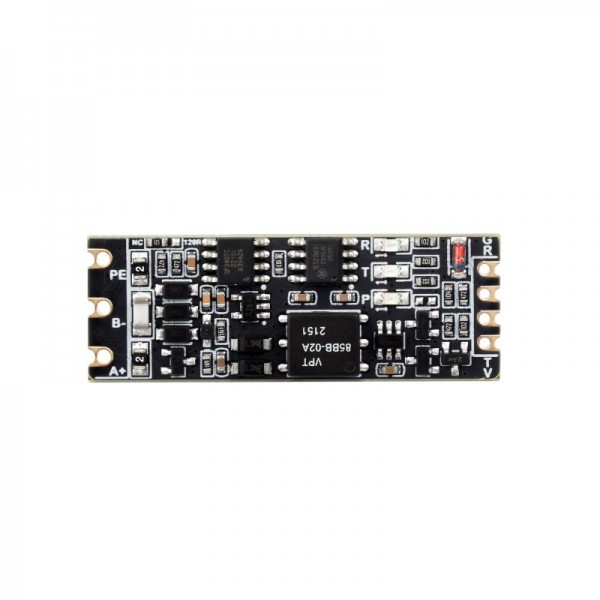

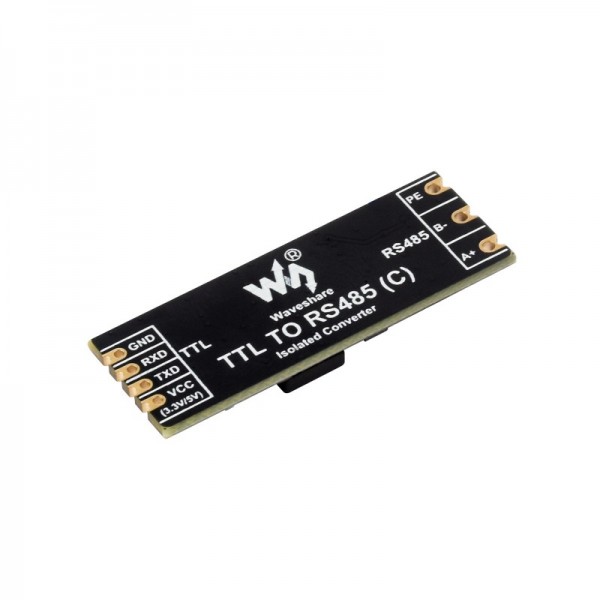

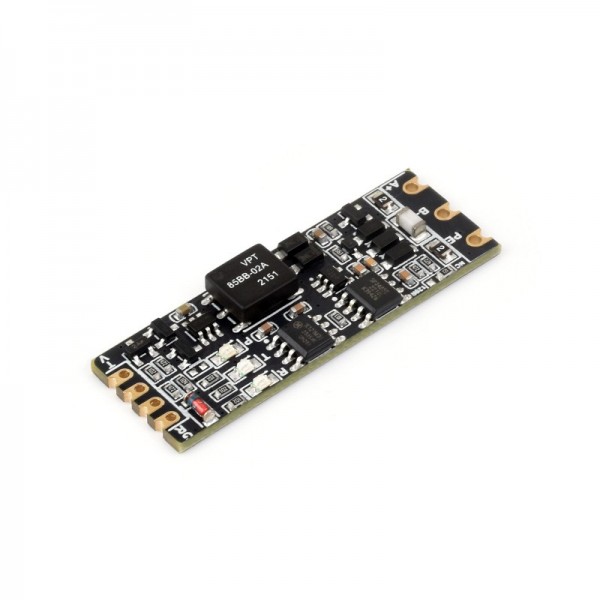

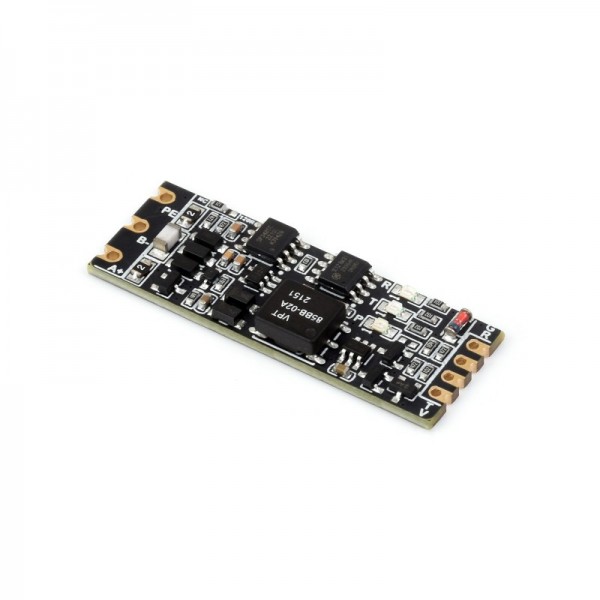

TTL to RS485 (C) Galvanic Isolated Converter Half-Duplex Communication Lightningproof & Anti-Surge Multi-Isolation Protection

166-075

This product is no longer in stock

Close

Add to wishlist

Free Google QRcode module from Mediacom87

TTL to RS485 (C) Galvanic Isolated Converter Half-Duplex merupakan modul konverter TTL ke RS485. Konverter ini sudah industrial grade dengan dilengkapi beberapa proteksi untuk melindungi modul ini ketika digunakan pada lingkungan yang keras (seperti Industri).

Fitur:

    • Compatible with TTL/RS485 Standard
    • Compatible with 3.3V ~ 5V TTL Signal Level
    • Onboard Unibody Power Supply Isolation
    • Onboard Unibody Digital Isolation
    • Onboard TVS (Transient Voltage Suppressor)
    • Onboard Self-Recovery Fuse and Protection Diodes
    • Onboard RS485 Output Terminal 120R Resistor

Spesifikasi:

    • Power Supply: 3.3V ~ 5V
    • Protection: Over-voltage
    • Transmission Distance (TTL): Less than 10m
    • Transmission Mode (TTL): Point to Point
    • Protection (RS485): 200W Lightningproof and Surge-Suppress, 6KV ESD Protection
    • Terminal Resistor (RS485): 120R (Enabled via Soldering)
    • Transmission Distance (RS485): 1.2km
    • Transmission Mode (RS485): Point to Point (up to 32 nodes, it is recommended to use repeaters for 16 nodes or more)
    • Dimensi: 42.8 x 15.2 x 4.75mm

Dokumen:

1. Datasheet (Link)
