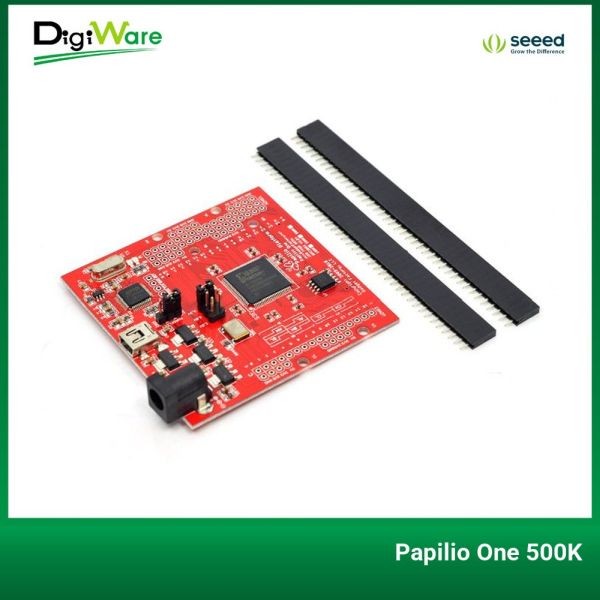

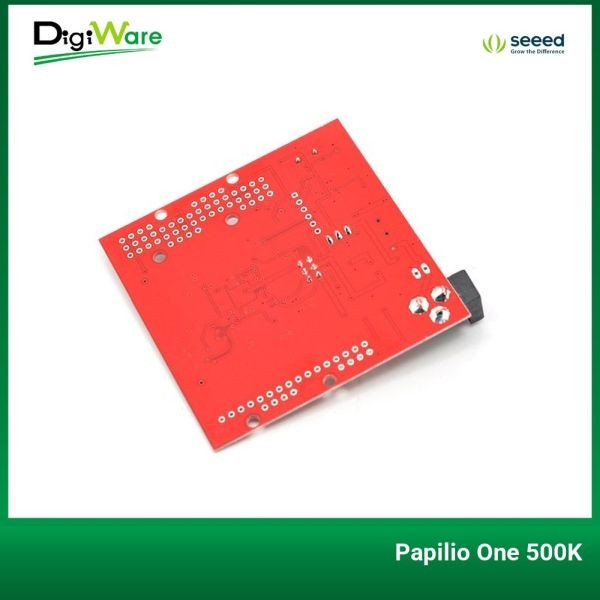

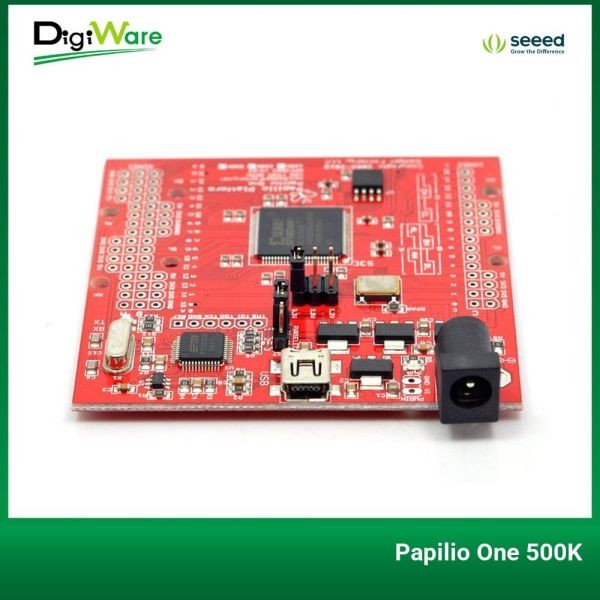

Papilio One 500K

Papilio adalah papan pengembang FPGA bersifat Open Source berbasis chip FPGA Xilinx Spartan 3E FPGA. Mempunyai 48 I/O, dual channel USB, integrated JTAG programmer, 4 catu daya, dan koenktor power. Papilio memberikan semua yang dibutuhkan bagi anda yang ingin memulai mempelajari FPGA.

Power
Four independent power rails at 5V, 3.3V, 2.5V, and 1.2V.
Power supplied by a power connector or USB.
DC Input Jack.
Input Voltage (recommended): 6.5-10V

USB
Two channel USB connection for JTAG and serial communications implemented with FT2232D.
EEPROM memory to store configuration settings for FT2232 USB chip.

Spartan 3E FPGA
32MHz oscillator that can be used by Xilinx DCM to generate any required clock speed.
VTQFP-100 footprint that supports Xilinx XC3S100E, XC3S250E, and
XC3S500E parts.
I/O can be set to support 1.2V, 2.5V, or 3.3V.

SPI Flash
4M SPI Flash

Wings
- 48 bidirectional I/O lines which can be split up as: 1x 32 Bit Wing/3x 16 Bit Wings/6x 8 Bit Wings
- 0.1" spacing for compatibility with bread boards.

Dimensions
2.7 inchi x 2.7 inchi
