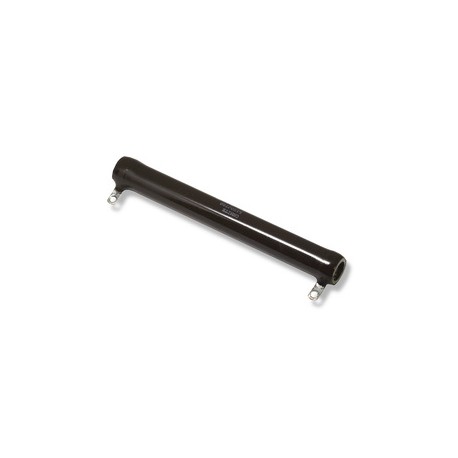

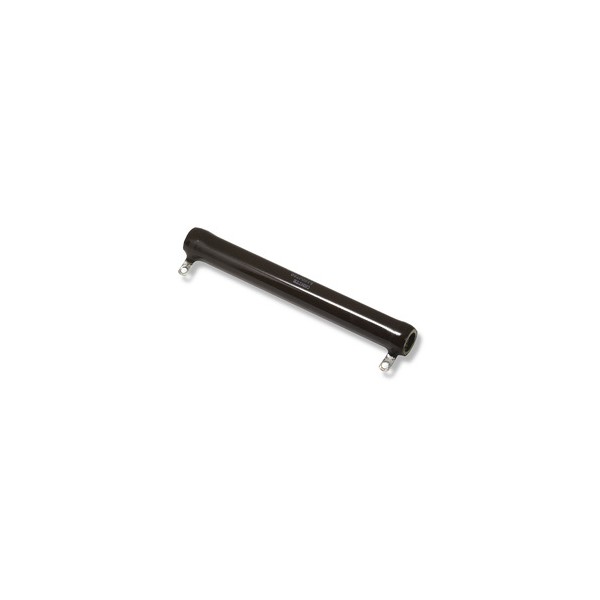

Wirewound Resistors - Chassis Mount 225Watt 50 OHM 5% High Power (L225J50RE)

Wirewound Resistors - Chassis Mount 225Watt 50 OHM 5% High Power (L225J50RE).

Spesifikasi:

• Manufacture: Ohmite
• Resistance: 50 Ohms
• Power Rating: 225 W
• Voltage Rating: 4.595 kV
• Tolerance: 5%
• Termination Style: Solder Lug
• Temperature Coefficient: 260 PPM / C
• Length: 267mm
• Maximum Operating Temperature: +350°C
• Operating Temperature: +25°C ~ +350°C

Dokumen:

1. Datasheet (Link)
