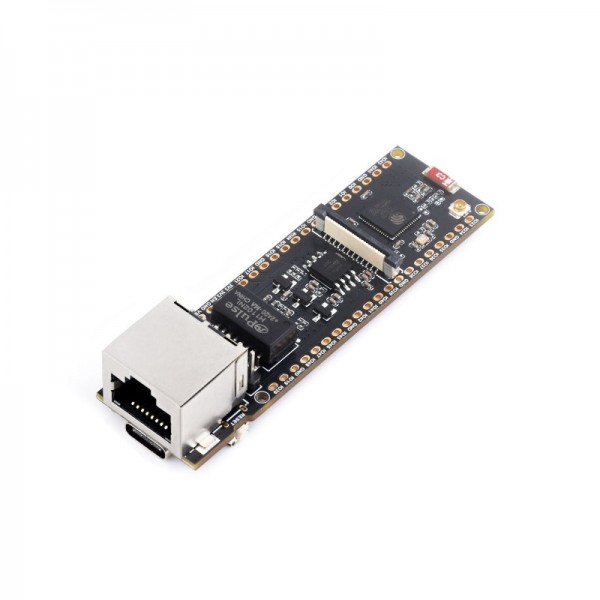

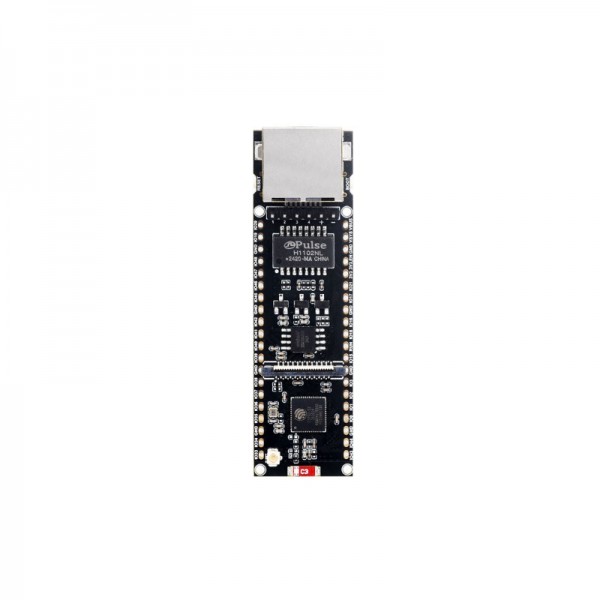

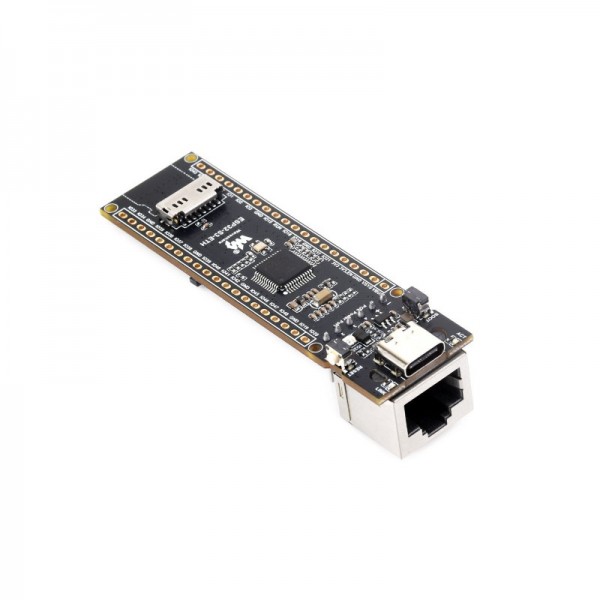

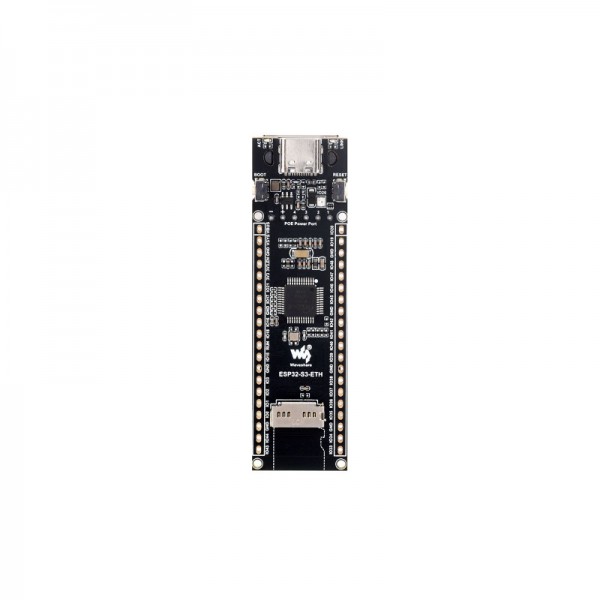

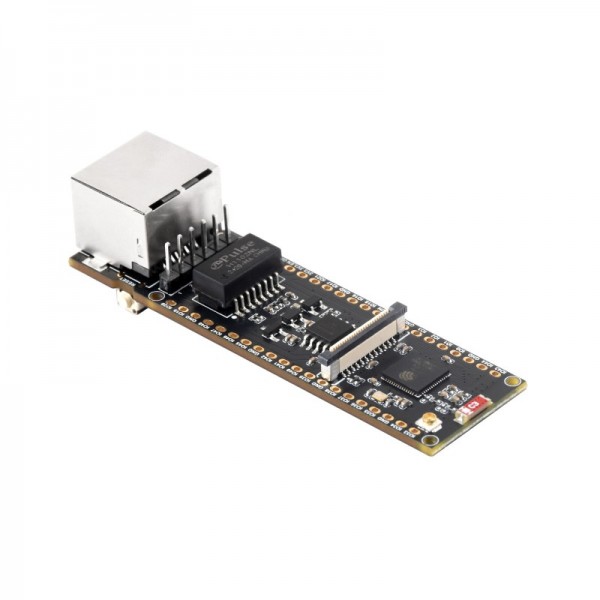

ESP32-S3 ETH Development Board 10/100Mbps RJ45 Ethernet Port WiFi Bluetooth

ESP32-S3 ETH merupakan development board berbasis ESP32-S3R8 yang mengintegrasikan WiFi, Bluetooth, dan Ethernet 10/100 Mbps yang dirancang untuk keperluan IoT, smart home, dan aplikasi yang membutuhkan konektivitas wired dan wireless yang andal.

Fitur:

• Based on ESP32-S3
• WiFi and BLE 5 Support
• Easy to Develop
• Support Ethernet and PoE
• Onboard Camera Interface
• Onboard TF Card Slot
• Compatible with Pico Header
• Camera Interface
• RJ45 Ethernet Port (Optional for PoE Module)

Spesifikasi:

• Power Supply: 5V USB Type-C atau PoE
• Mikrokontroler: ESP32-S3R8 (Xtensa LX7 Dual-Core@240MHz)
• Memori: 512KB SRAM, 8MB PSRAM, 16MB Flash
• Ethernet: W5500 (SPI), 10/100 Mbps
• PoE: Opsional (Modul terpisah)

Dokumen:

1. Datasheet (Link)
