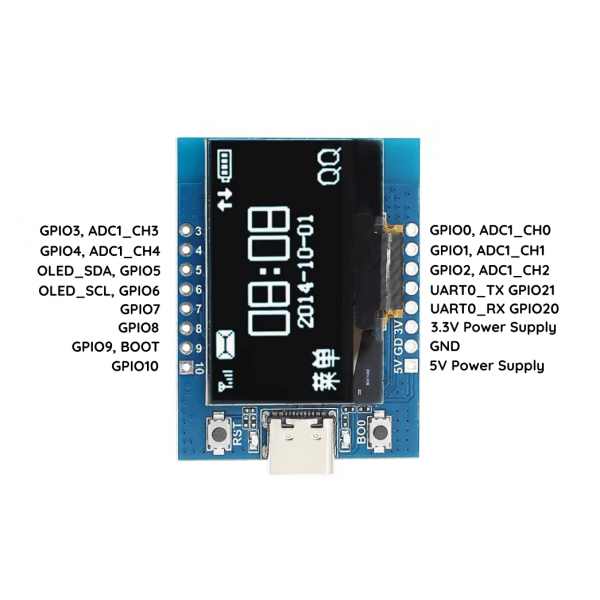

ESP32-C3 Development Board With 1.3 inch OLED Display Module White WiFi Bluetooth Module For Smart Home

ESP32-C3 Development Board with 1.3 inch OLED Display merupakan development board berbasis ESP32-C3 yang sudah dilengkapi dengan layar OLED kecil 1.3 inch serta konektivitas WiFi dan Bluetooth untuk aplikasi IoT.

Aplikasi:

• Smarthome
• IoT Prototyping
• Embedded System dengan Display Integrated

Fitur:

• Support Konektivitas WiFi dan Bluetooth
• Menggunakan ESP32-C3 RISC-V Single Core
• Built-in 1.3 inch OLED Display
• Dilengkapi dengan Banyak Interface

Spesifikasi:

• Model: ESP32 C3 Development Board
• Built in Flash: 4M
• Wireless Interface: 2.4G WiFi & Bluetooth 5
• Clock Frequency: 160MHz
• UART Interface: 2 Channels
• ADC Interface: 5 Channels
• SPI Interface: 1 Channel
• I2C Interface: 1 Channel
• GPIO: 11 Channels
• Display: 1.3 Inch OLED Display
