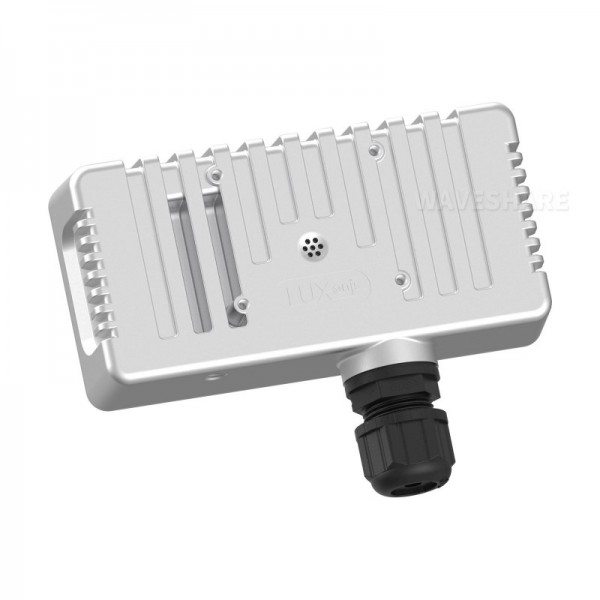

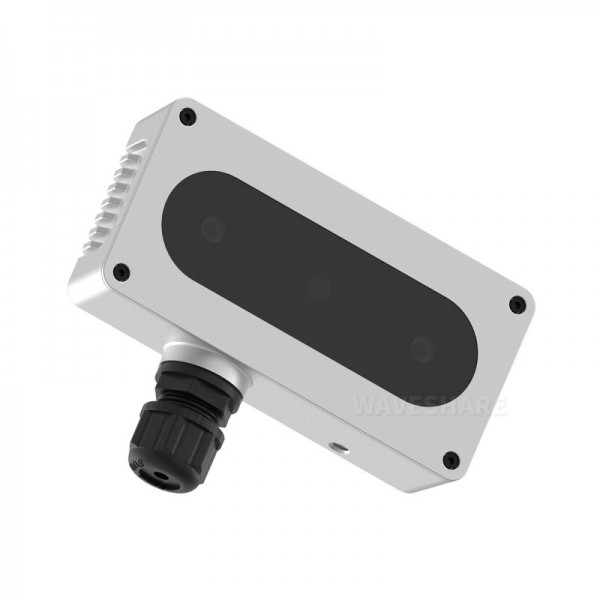

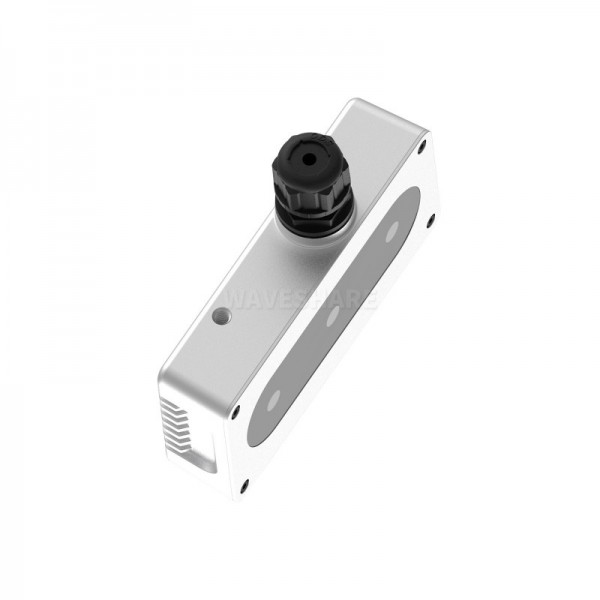

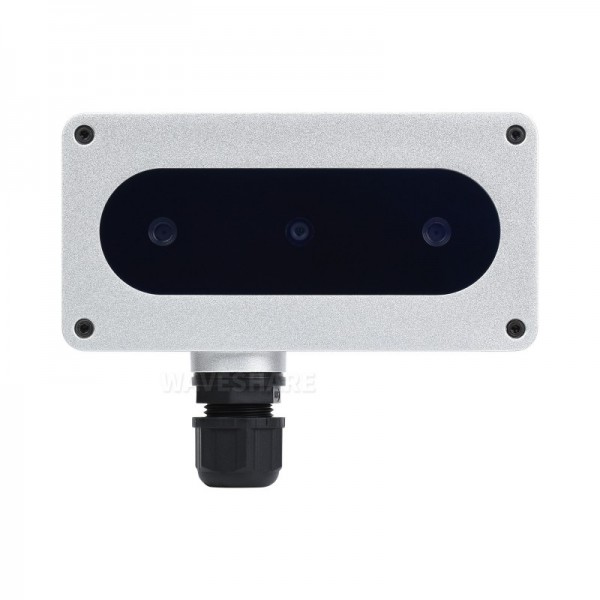

OAK-D-POE 12MP IMX378 OV9282 Development Kit with PoE Feature OpenCV AI Machine Vision Kit IP67 Waterproof

OAK-D-POE merupakan kamera AI + depth vision berbasis embedded system yang menggabungkan computer vision, AI inference, dan depth sensing dalam satu perangkat industrial. Perangkat ini ditenagai oleh Intel Myiad X (hingga 4 TOPS), perangkat ini mampu menjalankan AI langsung di dalam kamera (on-device AI) tanpa membebani PC atau server.

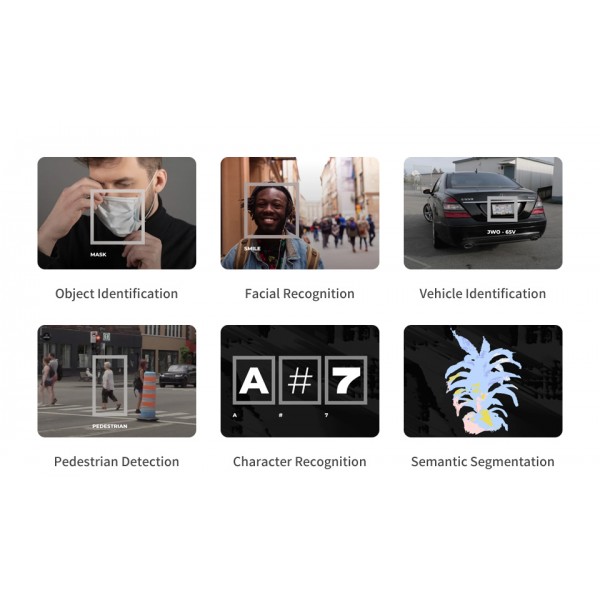

Aplikasi:

• Intelligent Traffic
• Intelligent Driving
• Intelligent Safety & Security
• Robotics

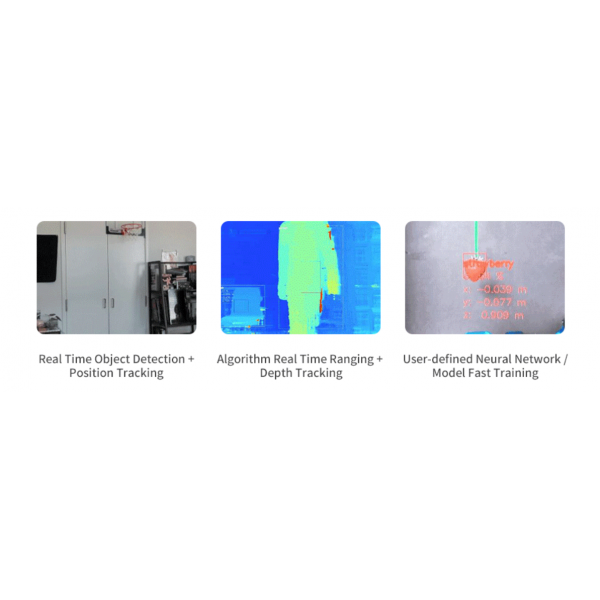

Fitur:

• Object Tracking up to 1000
• AprilTags Structured Navigation
• Motion Estimation with BG Subtraction
• 4K Video Recording
• WARP/DEWARP for Fisheye Applications
• Semantic Segmentation
• MJPG/JPEG Encoding
• Object Tracking in 3D Space
• Stereo Depth Measuring

Spesifikasi:

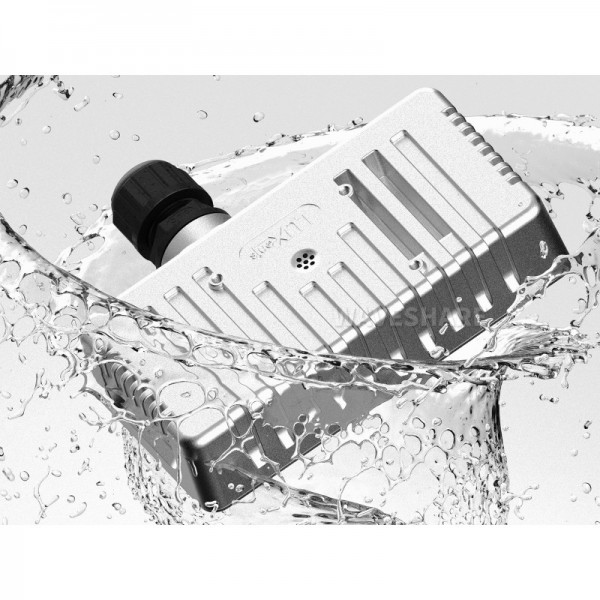

• Waterproof Rating: IP67
• Depth Measuring Range: 0.2 ~ 9m
• Depth Camera: 1MP, Global Shutter
• RGB Camera: 12MP
• Max Framerate: 60fps (RGB), 120fps (Depth)

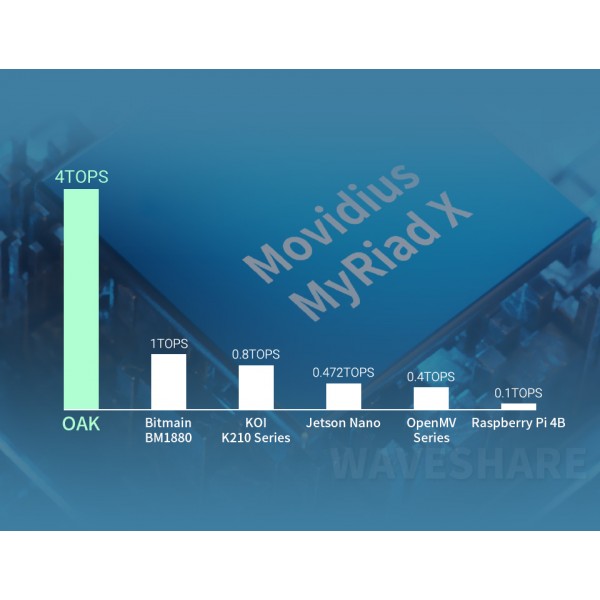

• AI Chip: Intel Myriad X 4 TOPS Computing Performance
• Video Plug Flow: 4K 30 fps H.265 plug flow
• Connector: Gigabit Ethernet with 802.3af-compliant PoE Circuit
• Expansion Interfaces: GPIO, SPI, UART
• NN Platform Support: All Platforms
• Power Consumption: 2W ~ 5.5W
• Development Language: Python, C++

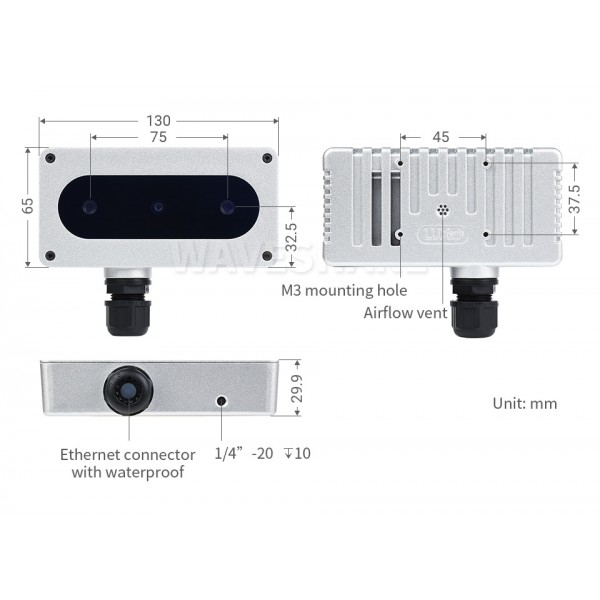

• Enclosure: Aluminum Enclosure

Spesifikasi RGB Camera:

• Sensor: IMX378
• Max FPS: 60 FPS
• 4K FPS: 30 FPS
• Resolution: 12MP (4032 x 3040 px)
• FOV: 81 DFOV° - 69 HFOV°
• Lens Size: 1/2.3 inch
• Aperture: 2.0

Spesifikasi Depth Camera:

• Sensor: OV9282
• Max FPS: 120 FPS
• Pixel Size: 3um x 3um
• Resolution: 1280 x 800px
• FOV: 89 DFOV° - 80 HFOV°
• Lens Size: 1/2.3 inch
• Aperture: 2.2

Paket Penjualan:

1x OAK-D-POE
1x Ethernet Cable
1x Clean Cloth

Dokumen:

1. Datasheet (Link)
