reComputer Super J3011 Intelligent Edge AI Computer NVIDIA Jetson Orin Nano 8GB RAM 128GB NVMe SSD Aluminum case

reComputer Super J3011 merupakan mini komputer AI berbasis NVIDIA Jetson Orin Nano 8GB dengan kemampuan komputasi AI hingga 67 TOPS dalam mode super. Mini komputer ini sangat cocok diaplikasikan untuk analisis video, object detection, pose estimated, segmentasi, robotika, generative AI (LLM), dan komputasi AI lainnya.

Aplikasi:

• Robotika
• Large Language Model (LLM) Local
• Computer Vision
• Dan Lain Sebagainya

Fitur:

• Pre-Installed JetPack 6.2
• Super Boost AI Performance
• Energy-Efficient Operation
• Robust Thermal Design
• Rich Interfaces
• Ready for Deployment
• Support Mode Super
• Support SSD NVMe
• Support Wireless Connector: WiFi/BLE/LTE

Spesifikasi Umum:

• Applications Processor (AP): NVIDIA Orin Nano 8GB
• AI Performance: Orin Nano 8GB - 67 TOPS (MAXN_SUPER)
• GPU: 1024-core NVIDIA Ampere Architecture GPU with 32 Tensor Cores
• GPU Max Frequency: 1020 MHz (MAXN_SUPER)
• CPU: 6-core ARM Cortex-A78AE
• CPU Max Frequency: 1.7GHz (MAXN_SUPER)
• Memory: 8GB 128-bit Wide LPDDR5 DRAM (Up to 68 GB/s; 102 GB/s MAXN_SUPER)
• Power: 7W - 15W - 25W
• Video Encode: 1080p30 Supported by 1-2 CPU Cores
• Video Decode: 1x 4K60 (H.265), 2x 4K30 (H.265), 5x 1080p60 (H.265)
• CSI Camera: Up to 4 Cameras, (8 via Virtual Channels), 8 Lanes MIPI CSI-2, D-PHY 2.1 (Up to 20Gbps)
• Dimensi: 69.6 x 45mm

Spesifikasi Carrier Board:

• Power: 12 ~ 19V 5525 Barrel DC Jack
• Storage: 1x M.2 Key M PCIe (M.2 NVMe 2280 SSD 128G Included)
• M.2 KEY E: 1x M.2 Key E for WiFi/Bluetooth Module
• Mini PCIe: 1x mini-PCIe for LTE 4G Module
• Ethernet: 2x RJ45 Gigabit Ethernet
• USB: 4x USB 3.2 Type-A (5 Gbps); 1x USB 2.0 Type-C (Device Mode/Debug)
• Camera: 4x Mii CSI (2-Lane 15-Pin)
• CAN: 1x CAN (4-Pin Header)
• Display: 1x HDMI 2.1
• Fan: 1x 4-Pin 1.25mm Fan Connector (5V PWM), 1x 4-Pin 2.54mm Fan Connector (12V PWM)
• Extension Port: 1x 40-Pin Extension Header, 1x 12-Pin Control and UART Header
• RTC: 1x RTC 2-Pin, 1x RTC Socket
• LED: 2x LED (PWR and ACT)
• Button: 1x PWR, 1x RESET
• Switch: 1x REC
• Antenna Hole: 4x Antenna Hole
• Operating Temperature: -20°C ~ +65°C
• Certification: RoHS, REACH, CE, FCC, UKCA, KC

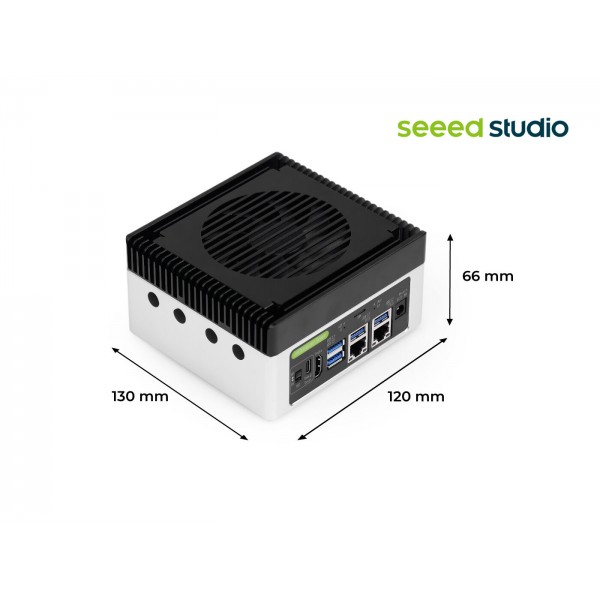

• Dimensi: 130 x 120 x 66mm

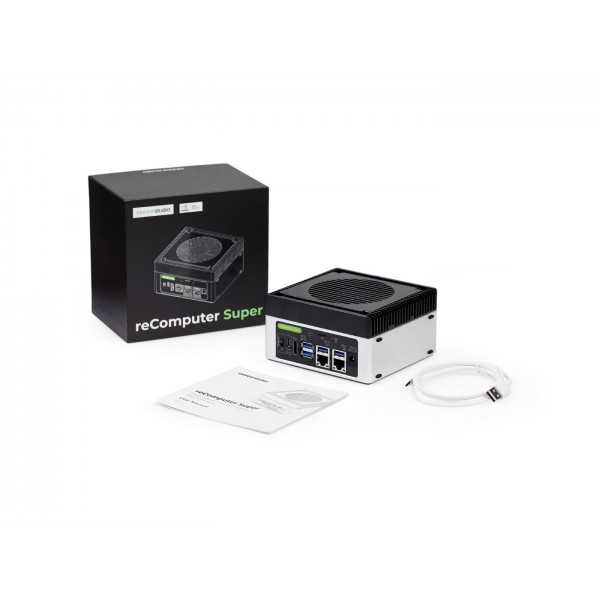

Paket Penjualan:

1x Jetson Orin Nano 8GB
1x Seeed Carrier Board (reComputer Super J401)
1x 128GB NVMe SSD
1x Aluminum Case and Heatsink with Fan
1x USB Cable (Type A to Type C)
1x User Manual

Dokumen:

1. User Manual & Datasheet (Link)
